SYSTEM R1

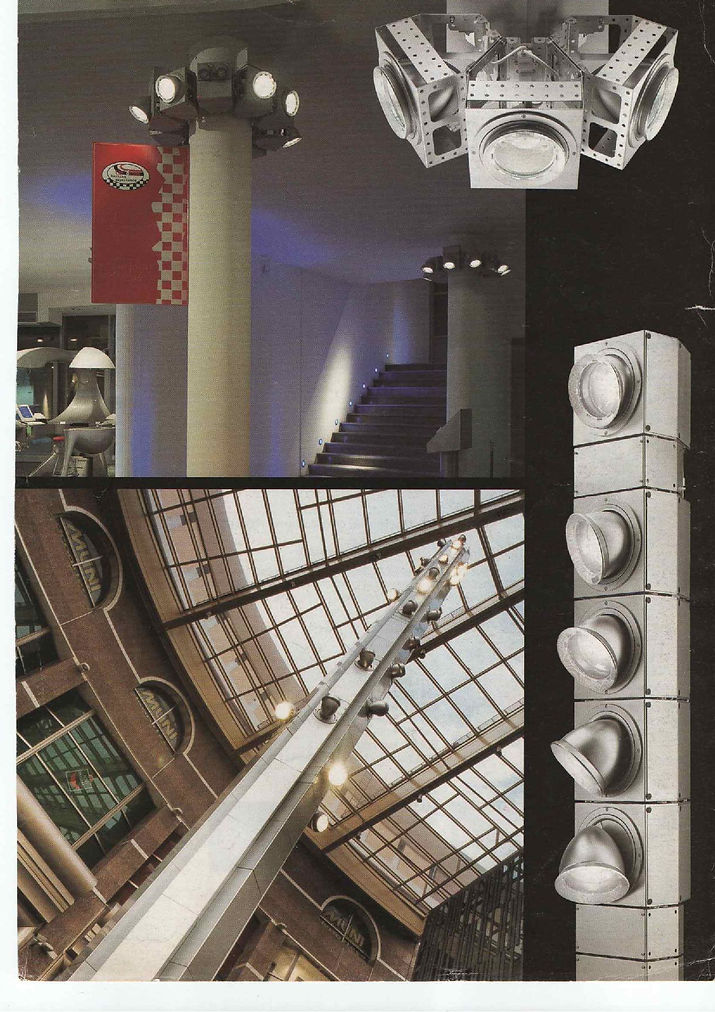

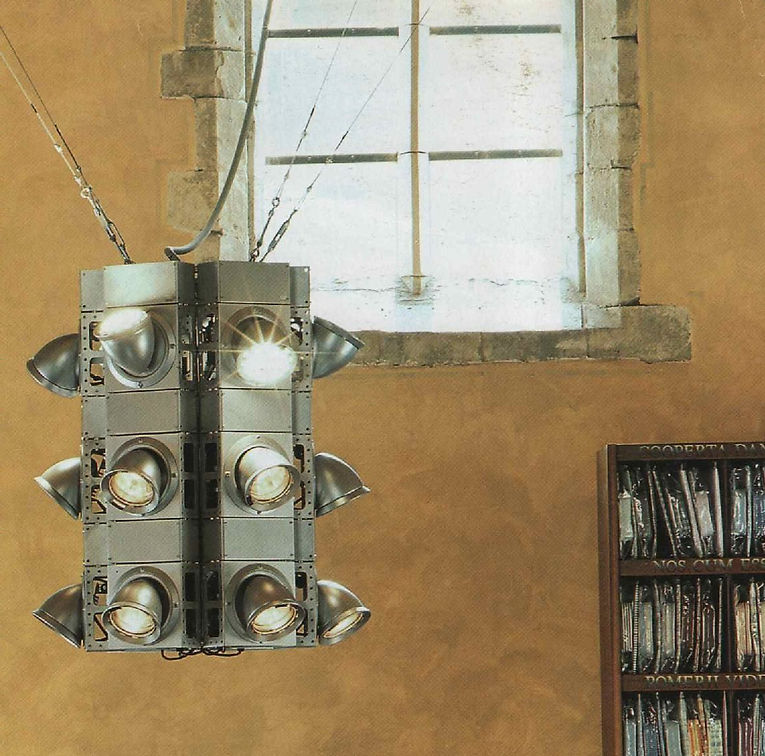

R1 and the example of boldness and sophistication, with its futuristic design and its flexibility, provides a range of installation possibilities and associated with directable built-ins optional with complete freedom of application
YB 628 ABS/A
Module R1 240 PAR30 AR111
Body in phosphorized steel sheet, matte electrostatic painting finish, white, black or gray, (other colors on request) optional directional built-in modules in ABS or aluminum for LED lamps PAR 30 E27 or AR111 GU10, G53, LED HCI PAR30 – COIN AR111 ,fixing options by , steel cable with YB636M micro adjustment or with YB636G hooks integrated 2P+T sockets, with double male plug YB629PL (optional), indoor use.
YB 718 ABS/A
Module R1 240 PAR16 / Dichroic
Body in phosphorized steel plate or aluminum, matte electrostatic painting finish, white, black or gray, (other colors on request) optional directional built-in modules in aluminum or ABS for LED PAR16 lamp GU10 and GU5,3 fixing options steel cable with micro adjustment YB636M or with hooks YB636G integrated sockets 2P+T, with double male plug YB629PL (optional), indoor use

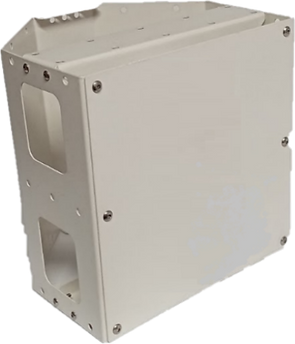

YB 781
Module R1 240 Empty
Body in phosphorized steel sheet or aluminum, matte electrostatic painting finish, white, black or gray (other colors on request), Distance module or for housing various equipment, fixation by steel cable with YB636M micro-adjustment or with YB636G hooks integrated sockets 2P+T, with double male plug YB629PL (optional) ,indoor use
.png)
YB 871
Module R1 1200 3 PAR30/AR111
Body in phosphorized steel plate, matte electrostatic painting finish, white, black or gray, (other colors on request) optional directional built-in modules in ABS or aluminum for 3 LED lamps PAR 30 E27 or AR111 GU10, G53, LED HCI PAR30 – COIN AR111, fixing options by , steel cable with YB636M micro adjustment or with YB636G hooks integrated 2P+T sockets, with double male plug YB629PL (optional), indoor use.
YB 817
Module R1 1200 Empty
Body in phosphorized steel sheet, matte electrostatic paint finish, white, black or gray, (other colors on request) module spacer and for housing various equipment, fixation by steel cable with micro adjustment YB636M or with hooks YB636G integrated sockets 2P+T, with double male plug YB629PL (optional), indoor use
YB 961
Module R1 1200 LED 23W
Body in phosphorized steel plate, matte electrostatic painting finish, white, black or gray, (other colors on request) built-in module optional recessed profile LED with niche 37 x 1195mm Linear LED 23W 3000K/ 4000K/6000K , milky diffuser , fixing options fixed support YB629F , steel cable with micro adjustment YB636M or with hooks YB636G
Surprising version of the R1 system, innovating in the unique finish of unparalleled beauty, combining stainless steel resistance to functionality and sophistication, in a single system, integrated with optional directional spotlights in brushed aluminum.
Sistema R1i
inox

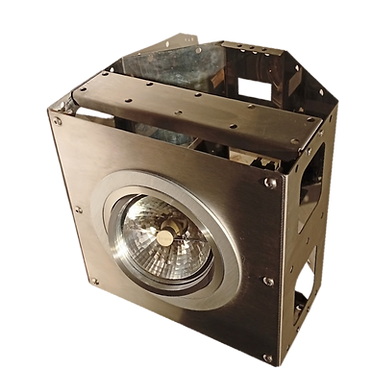

YB 628 i
Module R1 240 PAR30 AR111
Body in stainless steel sheet, brushed finish, optional directional built-in modules in brushed aluminum for LED PAR 30 lamps E27 or AR111 GU10, G53, LED HCI PAR30 – COIN AR111, fixing options by steel cable with micro adjustment YB636M or with hooks YB636G integrated 2P+T sockets, with double male plug YB629PL (optional) , indoor use
YB 718 i
Module R1 240 PAR16 / Dichroic
Body in stainless steel sheet, brushed finish, optional directional built-in modules in brushed aluminum for PAR16 GU10 and GU5.3 LED lamp fixation by steel cable with YB636M micro adjustment or with YB636G hooks integrated 2P+T sockets, with double male plug YB629PL (optional), indoor use
YB 781i
Module R1 240 Empty
Body in brushed INOX steel sheet. Module used to house various equipment or with spacer, fixing options by steel cable with micro adjustment YB636M or with YB636G hooks integrated 2P+T sockets, with double male plug.
YB 871i
Module R1 1200 3 PAR30 / AR111
Body in brushed stainless steel sheet, options for fixing by YB629F support, or steel cable with micro adjustment YB636M or with hooks YB636G integrated 2P+T sockets, with double male plug YB629PL (optional), indoor use
YB 817i
Module R1 1200 Empty
Corpo em chapa de aço INOX escovado ,Modulo Reto Vazio,para alojar equipamentos diversos ,opções fixação por suporte YB629F, ou cabo de aço com micro regulagem YB636M ou com ganchos YB636G tomadas integradas 2P+T, com plug macho duplo YB629PL (opcional) , uso interno
YB 961i
Module R1 1200 LED 23W
Stainless steel sheet body, brushed finish built-in module optional recessed profile LED with niche 37 x 1195mm Linear LED 23W 3000K/ 4000K/6000K , milky diffuser , fixing options fixed support YB629F , steel cable with micro adjustment YB636M or with hooks YB636G

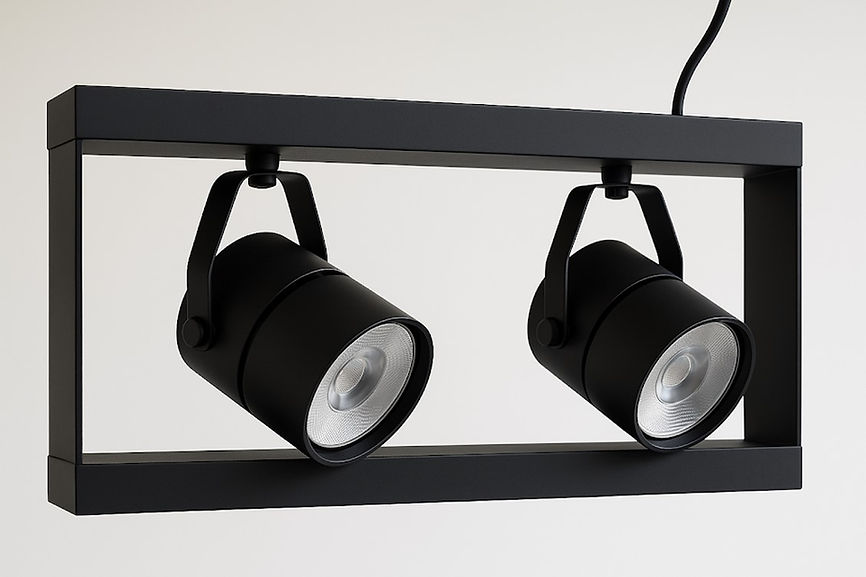

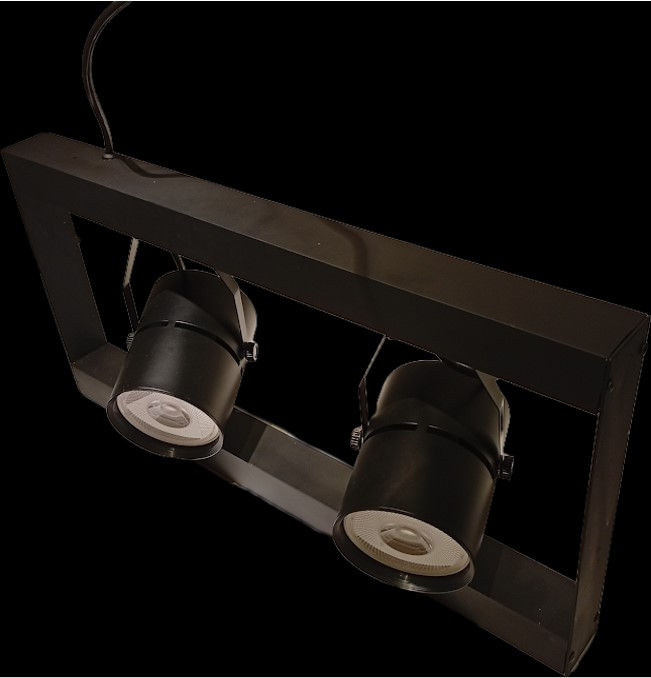

SISTEMA Heike
O conceito arquitetural do sistema HEIKE, faz com que se adeque perfeitamente aos espaços com leveza e possibilitando a utilização de spots dos mais variados modelos e combinações com muita flexibilidade e design.
YB 358
Heike 1200 Module Empty
Body in extruded aluminum, matte electrostatic painting, white, black or gray finish, modules fixed by steel cables YB636C with micro adjustment
YB 349
Heike 600 Module Empty
Body in extruded aluminum, matte electrostatic painting, white, black or gray finish, modules fixed by steel cables YB636C with micro adjustment
YB 259
Heike Linear LED 36W Module
Extruded aluminum body, matte electrostatic painting, white, black or gray finish, T8 18W 1200mm LED Tube module, milky acrylic diffuser, fixed by steel cables YB636C with micro tuning
YB 367
Heike Module 4x PAR30/AR111
Extruded aluminum body, matte electrostatic painting finish, white, black or gray, for 4 built-in aluminum PAR30 or AR111 focus modules, fixed by steel cables YB636C with micro tuning
YB 238
Heike Module -Connections
YB 238 L - Curved Connection 90°
YB 238 T - T connection
YB 238 X - Connectioni X
YB 238 R - Straight Connection
The vertical version of the HEIKE system is an option for those looking for a different aesthetic and volume in their project, combined with its functionality with directional spots and the possibility of focusing with a combination of lamps with different beams, enhancing the environment even more..

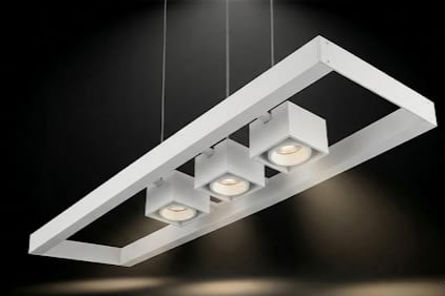

SISTEMA Heike V
_edited.jpg)
YB 178 / YB178T
Heike 1200 Module Empty
Extruded aluminum body, matte electrostatic painting, white, black or gray finish, modules fixed by steel cables YB636C with micro adjustment or YB 178 version, fixing on vertical ceiling or YB 178T
_edited.jpg)
YB 268 / YB268T
Heike 600 Module Empty
Body in extruded aluminum, matte electrostatic painting, white, black or gray finish, modules fixed by steel cables YB636C with micro adjustment or YB268T version, direct fixing to plasterboard or slab.
YB 376 / YB376T
Heike V 1200 Module - 4 PAR30/20
Extruded aluminum body, matte electrostatic painting, white, black or gray finish, with the option of 4 spots with PAR30/PAR20 LED spotlights , HCI PAR 30 LED , modules fixed by steel cables YB636C with micro adjustment or YB 376T version , fixing on the vertical ceiling
YB 456 / YB456T
Heike V 1200 Module - 4 AR111/70
Body in extruded aluminum, matte electrostatic painting finish, white, black or gray, with the options of 4 spots with spotlights AR111, AR70 LED , LED Coin AR111 , modules fixed by steel cables YB636C with micro adjustment or YB 456T version , fixing on the vertical ceiling
YB 366 / YB366T
Heike V 1200 Module - 4 Dicróica
Body in extruded aluminum, matte electrostatic painting, white, black or gray finish, with the option of 4 spots with spotlights Dichroic LED GU10 or GU5,3 modules fixed by steel cables YB636C with micro adjustment or YB version 366T , fixing on the vertical ceiling
YB 457 / YB457T
Heike V 600 Module - 2 PAR30/20
Extruded aluminum body, matte electrostatic painting, white, black or gray finish, with the option of 2 spots with PAR30/PAR20 LED spotlights , HCI PAR 30 LED , modules fixed by steel cables YB636C with micro adjustment or YB 376T version , fixing on the vertical ceiling
YB 486 / YB486T
Heike V 600 Module - 2 AR111/70
Extruded aluminum body, matte electrostatic painting finish, white, black or gray, with the options of 2 spotlights, AR111, AR70 LED , LED Coin AR111 , modules fixed by steel cables YB636C with micro adjustment or YB 376T version , fixing on the vertical ceiling
YB 368 / YB368T
Heike V 600 Module - 2 Dicróica
Body in extruded aluminum, matte electrostatic painting finish, white, black or gray, with options of 2 spots with spotlights, 2 spots with spotlights Dichroic LED GU10 or GU5,3, modules fixed by steel cables YB636C with micro regulation or version YB 376T , fixing on the vertical ceiling
YB 385
Heike Connections Module
YB 385 L - Curved Connection 90°
YB 385 T - T connection
YB 385 X - Connectioni X
YB 385 R - Straight Connection
Heike VH System
The HEIKE system enables the perfect combination with vertical and horizontal modules, enabling the most varied forms of installation giving freedom to create in the most varied environments
